POF three layers film blowing machine

Name: POF three layers film blowing machine
Brand: Zhonglong
Price: 1 USD

Place of Origin : China

Brand Name : Zhonglong

Model Number : POF

Packaging Details : wooden cases

Delivery Time : within 90 days

Payment Terms : T/T L/C

Supply Ability : 30sets/year

Certification : CE

MOQ : One set

Application : Film

Blow Moulding Type : Extrusion Blow Moulding

Automatic : Yes

Contact Now

INTRODUCE
Polyolefin shrink film three-layers composite extrusion blow molding machine is under flat extrusion blowing method, three-layer co-extruded composite membrane units, units for the production of three different structures of the polymer structure layer and the use of the performance of three different heat shrink film, POF film. etc.

PARAMETER

No.	Item	Parameters
1	Equipment Model	POF-1200	POF-1500	POF-2000
2	The width of the scope of film production (equivalent diameter)	1200mm	1350-1450mm	2000mm
3	Film thickness	15μm-30μm	15μm-30μm	15μm-30μm
3	Suitable for the production line the thickness of the scope of the production	15μm-25μm	15μm-25μm	15μm-25μm
4	Largest Output	ABC 170kg/h	ABC 200kg/h	ABC 260kg/h
5	Production of typical products	22μm 155 kg/h	22μm 180 kg/h	22μm 230 kg/h
6	The main use of raw materials (grades)	PE: Tao 2056, 2045 etc	PE: Tao 2056, 2045 etc	PE: Tao 2056, 2045 etc
6	The main use of raw materials (grades)	PP:5C37 Korea 841etc	PP:5C37 Korea 841etc	PP:5C37 Korea 841etc
7	Machine Dimensions	12000450012500 mm	14000460012700 mm	16500500014500 mm
8	Rolling method	Double rolling coiling	Double rolling coiling	Double rolling coiling
9	Rolling roll width	1250 mm	1550 mm	2050 mm
10	Maximum take-up diameter	500mm	500mm	500mm
11	Maximum rolling speed	55m/min	55m/min	55m/min
12	Films usually draw ratio	5-7 times	5-7 times
13	Blow up film more than most	5.5-6times	5.5-6times	5.5-6times
14	The average electricity load	installed capacity 280kwh normal operation 100kwh	installed capacity 300kwh normal operation 120kwh	installed capacity 340kwh normal operation 150kwh
15	A typical indicator of product quality guarantee value	Upper and lower error 4μm	Upper and lower error 4μm	Upper and lower error 4μm

POF three layers film blowing machine

Product Tags:

POF film blowing machine

POF three layers film blowing machine

film extruder

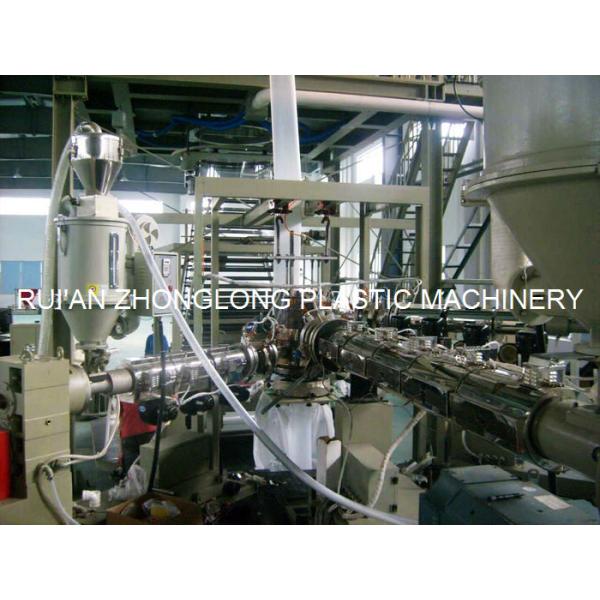

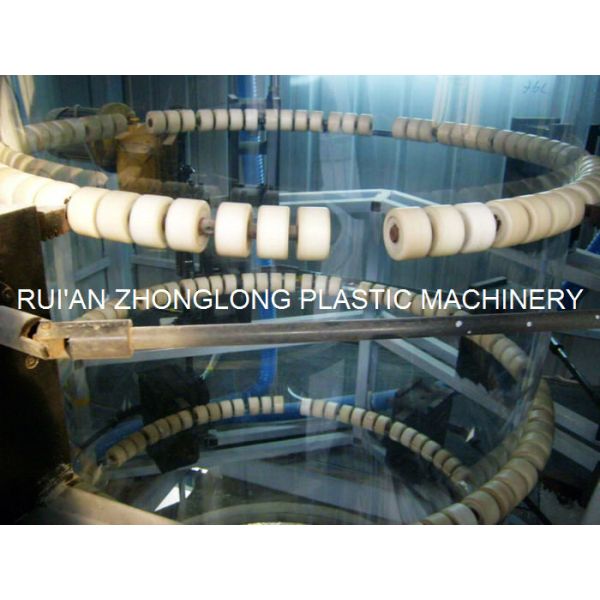

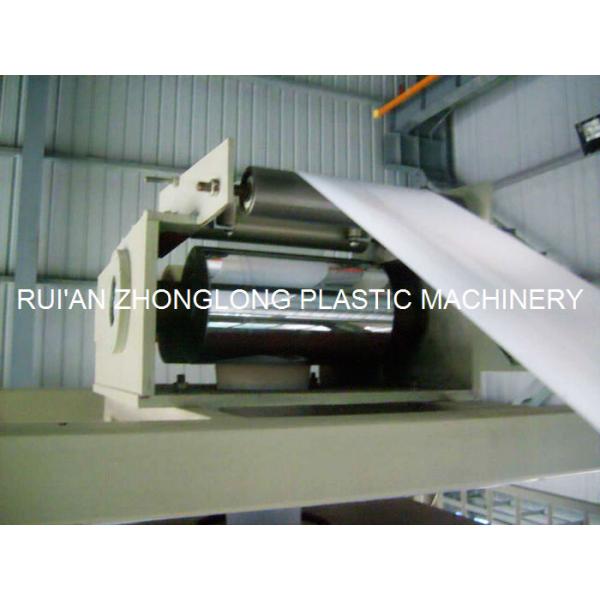

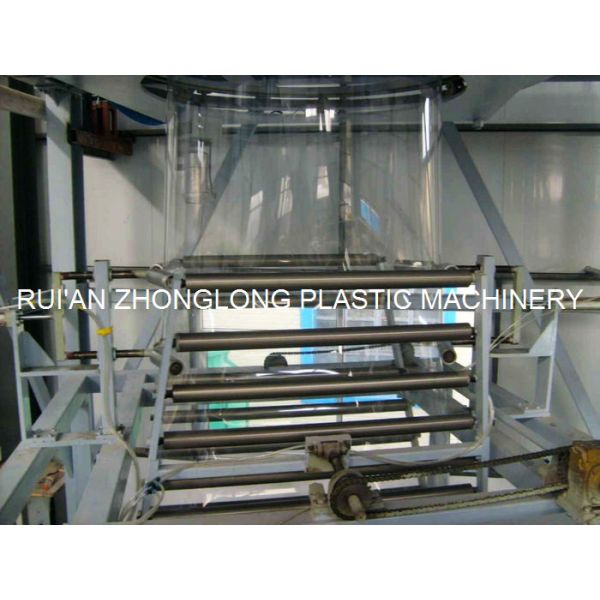

POF three layers film blowing machine Images
